Frequently Asked Questions for Installation

Heat output

It is important to calculate the amount of kilo watts (kW) you need to heat your space. We have made a calculator to help you choose the correct model.

Size calculator


Position

Ensure that your heater will fit into the space you have allocated adhering to the minimum distances to any combustible material. Allow access to clean, service and sweep the chimney.

More about positioning your heater

Chimney Flues

You must install a flue to remove gasses from the heater. You can exit through the roof or an external wall using the Zeroridge range of ICS and ICID flue pipe.

More about chimney flues

Smoke control zones

You must ensure that you are not in a smoke control zone, as  burning wood is not allowed.

More about smoke control zones


Installation

Your heater can be installed by any competent person. Simply connect your flue and plug into the electrical supply.

More about Installation

FAQs icon



Listed below are some of the most general questions asked about the installation of your Fabbri wood burning hot air space heaters.
Contact us or call 01531 584000, if you can't find the answers you're looking for.



You can burn any type of dry or seasoned wood, such as off cuts, broken pallets, waste wood, split logs, pellets, briquettes as well as small quantities of paper and cardboard mixed with wood. For more information about wood fuels, Click Here. Fuel-my-Fabbri



Single Phase 230v models

F28 and F55 models are suitable for single phase 230V.

3 Phase 415V

F85, F120, F240 and F350 require a 3 phase electric connection.




It’s always recommended to use an engineer who has some experience of heating and chimneys. However, the general rules are very straight forward, these include:

  • Correctly located in sensible position where fuel can be easily brought to.
  • The flue and chimney can be routed vertically with only a few and gentle bends.
  • Central to the heated location so the hot air can distribute relatively evenly.
  • Out of general passage ways and warehouse movements.

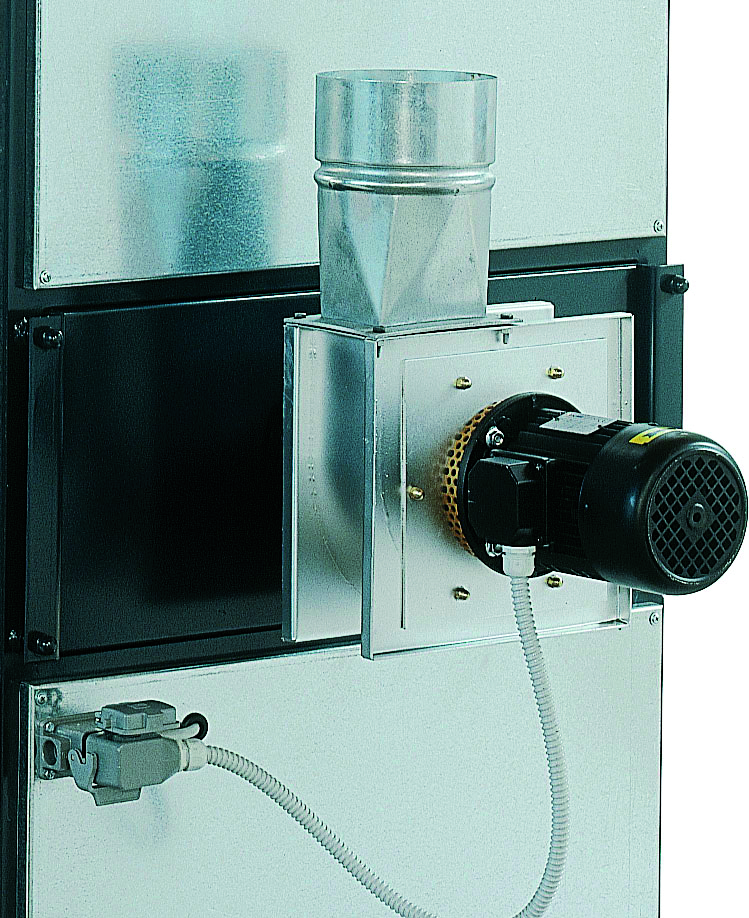

The F120, F240 and F350 are supplied as standard with flue fans to assist with creating a negative pressure.
The F28 is only available for natural draught chimneys.
The F55 and F85 can be supplied without a flue fan (ie. designed for a natural draught flue) or with a flue fan to assist with creating a negative pressure in the appliance.


Designation


F55 & F85 SV is supplied without a flue fan.
F55 & F85 CV are supplied with a flue fan.

The amount of wood needed to produce a certain amount of heat is mainly determined by the moisture.

To burn wet wood a lot of the energy in the wood is used boil the water into steam to get rid of it before burning.

The energy from wood is measured by the density in the wood. The heavier the wood the more the kW available per kg.

For a detailed view into wood and its energy read is Article woodLogs

As a rule no, ducting is not required.

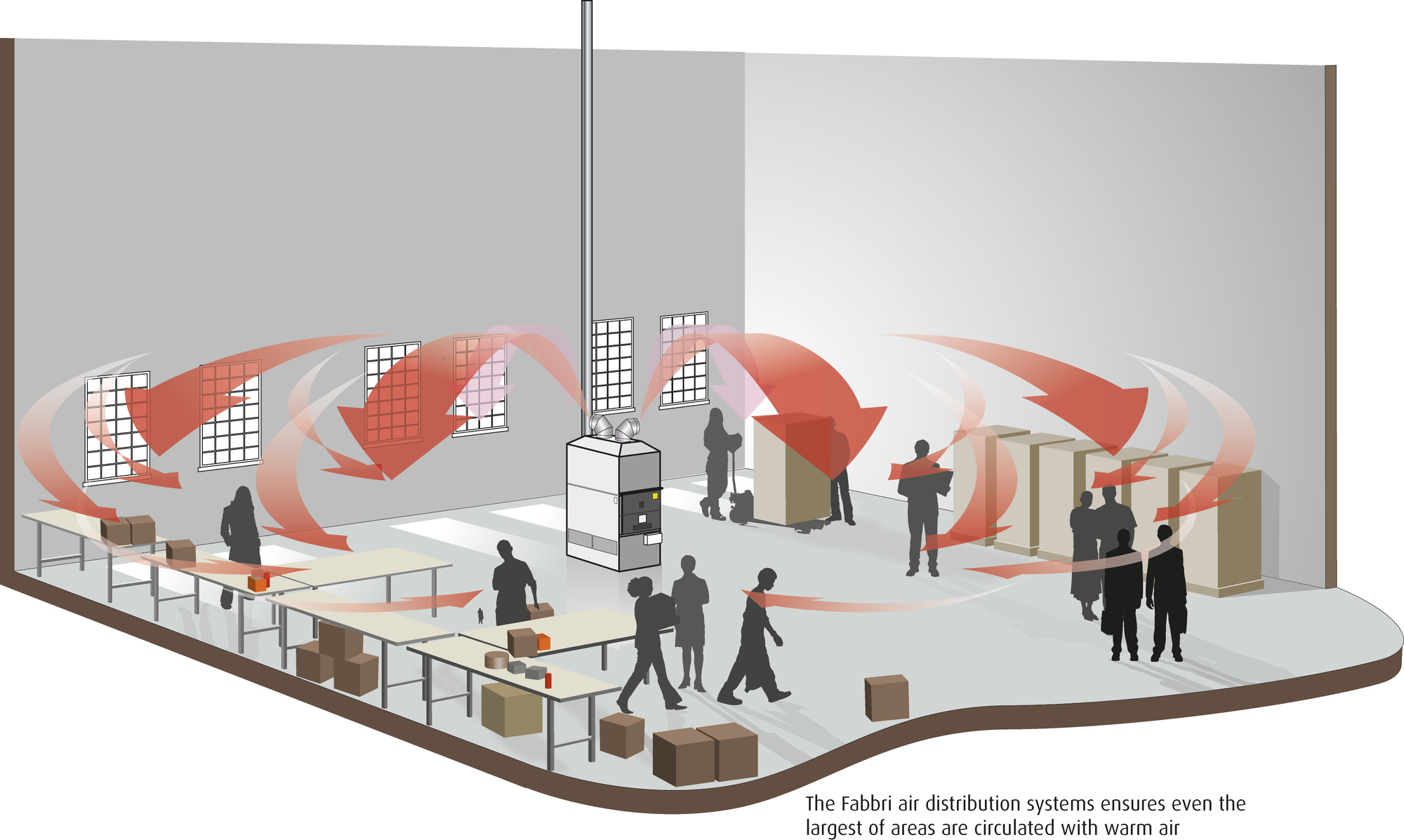

The Fabbri is supplied with very good internal distribution fans which collect the air from the room of installation, push this air through the heat exchanger and blow it from the top at speed to distribute it into the area being heated.


The Fabbri is fitted with directional tubes at the top so the heated air can be pointed towards where its needed most.
